PARTS MAINTENANCE OF PW PLUS DENTAL IMPLANT
Dental Implant
Products
Available Sizes of PW+ Dental Implants
For Implant fixture Dia 3.3 mm.
COVER SCREW
Hex. Length(L). Code.
1.0 mm 6.0 mm CS3306
ABUTMENT
Dia (Ø) Gingival Height Code.
3.9 mm 1.5 mm AR3309
3.9 mm 3.0 mm AR3313
3.9 mm 4.0 mm AR3314
4.5 mm 1.5 mm AW3310
4.5 mm 3.0 mm AW3313
4.5 mm 4.0 mm AW3314
EQUATOR ABUTMENT
Dia (Ø) Gingival Height Code.
3.2 mm 1.5 mm EA3304
3.2 mm 3.0 mm EA3305
3.2 mm 4.5 mm EA3307
ANGLE ABUTMENT
Dia (Ø) Gingival Height Code.
3.9 mm 1.2 mm AA3310
3.9 mm 4.0 mm AA3313
4.5 mm 1.5 mm AAW3310
4.5 mm 3.0 mm AAW3313
Healing Cap
Dia (Ø) Gingival Height Code.
4.2 mm 2.5 mm HR3309
4.2 mm 4.5 mm HR3311
4.2 mm 6.0 mm HR3313
5.5 mm 2.5 mm HW3309
5.5 mm 4.5 mm HW3311
5.5 mm 6.0 mm HW3313
6.5 mm 2.5 mm HX3309
6.5 mm 4.5 mm HX3311
RETAINING SCREW
Hex. Length(L). Code.
1.0 mm 7.5 mm RS3308
ZIRCON ABUTMENT
Dia (Ø) Gingival Height Code.
3.8 mm 1.5 mm ZA3307
EQUATOR ATTACH
Dia (Ø) Retention Code.
4.4/2.1 mm – CA008
4.2/2.0 mm – CN068
4.2/2.0 mm 0.6 kg CN053
4.2/2.0 mm 1.2 kg CN052
4.2/2.0 mm 1.8 kg CN051
4.2/2.0 mm 2.7 kg CN055
UTILITY ABUTMENT
Dia (Ø) Length(L). Code.
5.5 mm 12.3 mm UA3312
UCLA ABUTMENT
Dia (Ø) Gingival Height Code.
4.2 mm 1.3 mm UCL3305
IMPRESSION TAKING PARTS FOR Ø 3.3
IMPRESSION COPING
Dia (Ø) Length(L). Code.
4.0 mm 9.3 mm IC3310
Close Tray (Short)
IMPRESSION COPING
Dia (Ø) Length(L). Code.
4.0 mm 12.3 mm IC3313
Close Tray (Long)
IMPRESSION COPING
Dia (Ø) Length(L). Code.
4.0 mm 13.0 mm IC3315
Open Tray (Short)
IMPRESSION COPING
Dia (Ø) Length(L). Code.
4.0 mm 18.0 mm IC3320
Open Tray (Long)
ANALOG
Dia (Ø) Length(L). Code.
3.3 mm 15.0 mm AN3315
For Implant fixture Dia 3.75 mm.
COVER SCREW
Hex. Length(L). Code.
1.2 mm 6.0 mm CS3706
ABUTMENT
Dia (Ø) Gingival Height Code.
4.5 mm 1.5 mm AR3709
4.5 mm 3.0 mm AR3713
4.5 mm 4.0 mm AR3714
5.0 mm 1.5 mm AW3710
5.0 mm 3.0 mm AW3713
5.0 mm 4.0 mm AW3714
EQUATOR ABUTMENT
Dia (Ø) Gingival Height Code.
3.2 mm 1.5 mm EA3704
3.2 mm 3.0 mm EA3705
3.2 mm 4.5 mm EA3707
ANGLE ABUTMENT
Dia (Ø) Gingival Height Code.
4.5 mm 1.5 mm AA3710
4.5 mm 4.0 mm AA3713
5.0 mm 1.5 mm AAW3710
5.0 mm 4.0 mm AAW3713
Healing Cap
Dia (Ø) Gingival Height Code.
4.9 mm 2.5 mm HR3709
4.9 mm 4.5 mm HR3711
4.9 mm 6.0 mm HR3713
6.0 mm 2.5 mm HW3709
6.0 mm 4.5 mm HW3711
6.0 mm 6.0 mm HW3713
7.0 mm 2.5 mm HX3709
7.0 mm 4.5 mm HX3711
RETAINING SCREW
Hex. Length(L). Code.
1.2 mm 8.2 mm RS3708
ZIRCON ABUTMENT
Dia (Ø) Gingival Height Code.
4.4 mm 1.5 mm ZA3707
EQUATOR ATTACH
Dia (Ø) Gingival Height Code.
4.4/2.1 mm – CA008
4.2/2.0 mm – CN068
4.2/2.0 mm 0.6 kg CN053
4.2/2.0 mm 1.2 kg CN052
4.2/2.0 mm 1.8 kg CN051
4.2/2.0 mm 2.7 kg CN055
UTIIlITY ABUTMENT
Dia (Ø) Length(L). Code.
6.0 mm 12.3 mm UA3712
UCLA ABUTMENT
Dia (Ø) Gingival Height Code.
4.8 mm 1.3 mm UCL3705
MULTI-UNIT ABUTMENT
Dia (Ø) Gingival Height Code.
4.5 mm 1.2 mm MUA3705
IMPRESSION TAKING PARTS FOR Ø 3.75
IMPRESSION COPING
Dia (Ø) Length(L). Code.
4.5 mm 8.3 mm IC3710
Close Tray (Short)
IMPRESSION COPING
Dia (Ø) Length(L). Code.
4.5 mm 11.3 mm IC3713
Close Tray (Long)
IMPRESSION COPING
Dia (Ø) Length(L). Code.
4.5 mm 12.0 mm IC3714
Open Tray (Short)
IMPRESSION COPING
Dia (Ø) Length(L). Code.
4.5 mm 16.6 mm IC3719
Open Tray (Long)
ANALOG
Dia (Ø) Length(L). Code.
3.75 mm 16.6 mm AN3715
For Implant fixture Dia 4.2 & 5.0 mm.
COVER SCREW
Hex. Length(L). Code.
1.2 mm 6.0 mm CS4206

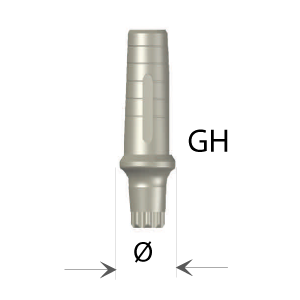

ABUTMENT
Dia (Ø) Gingival Height Code.
5.0 mm 1.5 mm AR4209
5.0 mm 3.0 mm AR4213
5.0 mm 4.0 mm AR4214
6.0 mm 1.5 mm AW4210
6.0 mm 3.0 mm AW4213
6.- mm 4.0 mm AW4214
EQUATOR ABUTMENT
Dia (Ø) Gingival Height Code.
3.4 mm 1.5 mm EA4204
3.4 mm 3.0 mm EA4205
3.4 mm 4.5 mm EA4207
ANGLE ABUTMENT
Dia (Ø) Gingival Height Code.
5.0 mm 1.5 mm AA4210
5.0 mm 3.0 mm AA4213
6.0 mm 1.5 mm AAW4210
6.0 mm 3.0 mm AAW4213
Healing Cap
Dia (Ø) Gingival Height Code.
5.8 mm 2.5 mm HR4209
5.8 mm 4.5 mm HR4211
5.8 mm 6.0 mm HR4213
6.5 mm 2.5 mm HW4209
6.5 mm 4.5 mm HW4211
6.5 mm 6.0 mm HW4213
7.5 mm 2.4 mm HX4209
7.5 mm 4.5 mm HX4211
RETAINING SCREW
Hex. Length(L). Code.
1.2 mm 8.2 mm RS4208
ZIRCON ABUTMENT
Dia (Ø) Gingival Height Code.
4.8 mm 1.5 mm ZA4207
EQUATOR ATTACH
Dia (Ø) Gingival Height Code.
4.4/2.1 mm – CA008
4.2/2.0 mm – CN068
4.2/2.0 mm 0.6 kg CN053
4.2/2.0 mm 1.2 kg CN052
4.2/2.0 mm 1.8 kg CN051
4.2/2.0 mm 2.7 kg CN055
UTILITY ABUTMENT
Dia (Ø) Length(L). Code.
6.5 mm 12.3 mm UA4212
UCLA ABUTMENT
Dia (Ø) Gingival Height Code.
5.5 mm 1.3 mm UCL4205
MULTI-UNIT ABUTMENT
Dia (Ø) Gingival Height Code.
5.0 mm 1.2 mm MUA4205
IMPRESSION TAKING PARTS FOR Ø 4.2/5.0
IMPRESSION COPING
Dia (Ø) Length(L). Code.
5.0 mm 7.3 mm IC4210
Close Tray (Short)
IMPRESSION COPING
Dia (Ø) Length(L). Code.
5.0 mm 10.3 mm IC4213
Close Tray (Long)
IMPRESSION COPING
Dia (Ø) Length(L). Code.
5.0 mm 11.0 mm IC4214
Open Tray (Short)
IMPRESSION COPING
Dia (Ø) Length(L). Code.
5.0 mm 15.2 mm IC4218
Open Tray (Long)
ANALOG
Dia (Ø) Length(L). Code.
4.2 mm 15.0 mm AN4215
